 Up to 6 SDLT/DLT drives, Up to 8 AIT drives
Up to 60 DLT/SDLT, 54 LTO, 72 AIT Cartridges
Up to 28.8TB Capacity
Up to 475GB/Hour Transfer Rate
|
The Scalar 100 is a mid-range library that offers a powerful combination of industry-leading density, trouble-free scalability, and advanced storage networking technology.
This capacity-packed system is the first tape library to deliver a storage density of 1TB per rack unit. In fact, a standard rack cabinet can hold three Scalar 100s, giving you up to 43TBs of capacity in a very compact space.
Highly scalable, the Scalar 100 can grow from 15 to 96 tapes and from 1 to 8 drives. Adding capacity is easy. Upgrades take less than 10 minutes and don’t require changing your rack system or adding external elevators or pass-through ports.
The Scalar 100 also gives you enterprise-class storage features, including integrated SAN connectivity and management services, redundant power, remote management, and a bulk-load mailbox that can handle 2TBs at a time.
The Scalar 100 supports LTO, SDLT/DLT, or AIT technology.
|
 |

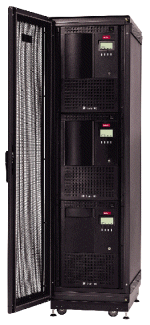

A
standard rack cabinet holds up to three Scalar 100's,providing
nearly 43TB of storage capacity! |
Features and Benefits
- Industry-leading density: stores up to 28.8TB in only 14 rack units
- Economical scalability: scales from 1 to 8 drives and from 15 to 96 cartridges—all within the same unit
- Space-efficient: compact size maximizes limited server room real estate
- Easy growth: expansion within minutes—and without pass-through ports
- Proven connectivity: storage network interoperability means seamless integration into new or existing SANs
- Intelligent SAN support: integrated storage networking support—including serverless backup, data path conditioning, and built-in firewall—for easier installation and operation, higher performance and reliability
- Reliability: built-in diagnostics, redundant power supplies, and a 1,000,000 cartridge-change rating
- Responsive service: one-year
on-site service provided by ADIC technical Assistance Center
(ATAC) with 24-hour, worldwide service and support
Library Configurations
| | LTO | AIT | SDLT/DLT |
| Drives | Slots** | Max Capacity* | Drives | Slots** | Max Capacity* | Drives | Slots** | Max Capacity* |
| | | LTO-2 | LTO-1 | | AIT-3 | AIT-2 | | SDLT 320 | SDLT 220 | DLT 8000 |
| Base Config. | 1 to 6 | Up to 18 | 7.2TB | 3.6TB | 2 to 8 | Up to 24 | 6.2TB | 3.1TB | 1 to 6 | Up to 15 | 4.8TB | 3.3TB | 1.2TB |
| w/2nd Storage Col. | 1 to 6 | Up to 36 | 14.4TB | 7.2TB | 2 to 8 | Up to 48 | 12.4TB | 6.2TB | 1 to 6 | Up to 30 | 9.6TB | 6.6TB | 2.4TB |
| w/3rd Storage Col. | 1 to 6 | Up to 54 | 21.6TB | 10.8TB | 2 to 8 | Up to 72 | 18.8TB | 9.4TB | 1 to 6 | Up to 45 | 14.4TB | 9.9TB | 3.6TB |
| w/4th Storage Col. | 1 to 6 | Up to 72 | 28.8TB | 14.4TB | 2 to 8 | Up to 96 | 25.0TB | 12.5TB | 1 to 6 | Up to 60 | 19.2TB | 13.2TB | 4.8TB |
| | Up to 12 6-slot magazines | Up to 12 8-slot magazines | Up to 12 5-slot magazines |
Operation
| Cartridge Change: | 10 seconds |
| Inventory Time: | Less than 60 seconds |
| Library Management Interface Operator Panel: | Password-protected, context-sensitive LCD menu display with backlight; displays library, drive, and mailbox activity |
| Remote Management: | Integrated web server (Remote Management Unit or RMU) |
| Drive: | Operational status LED; single character display |
| Library Interface: | Switch selectable for HVD, LVD/SCSI or Fibre Channel |
| Drive Interface: | LTO: LVD; AIT, SDLT/DLT: HVD or LVD/SCSI |
| SCSI Connection: | 68-pin micro-D |
| Import/Export: | Up to 12 (LTO/SDLT) or 18 (AIT) cartridge positions |
Reliability
| Drive Hard Error Rate: | Less than 1 in 1017 bits per permanent read error |
| Tape Shelf Life: | 30 years minimum (at 20 ºC, 40%RH) |
| MSBF: | Greater than 1,000,000 |
| MTBF: | Greater than 250,000 power on hours |
| MTTR: | Less than 30 minutes |
| Power: | Redundant power supplies available |
| User Upgrades: | Drives, mailbox, storage capacity columns, magazines, rackmount kit, casters, second power supply, Storage Networking Controller |
| Field Replaceable: | Power supplies, picker assembly, control electronics, Hot Swap Drives1, RMU |
| Diagnostics: | Auto calibration, auto inventory, Built-In-Test (BIT), SNMP alerts via RMU |
Physical
| Dimensions, stand-alone: | 18.9”W x
28.8”D x 25”H (48.0cm x 73.2cm x 63.5cm) |
| Dimensions, rack mounted: | 17.4”W x
28.8”D x 24.5”H (44.2cm x 73.2cm x 62.2cm) |
| Rack Height: | 14 Rack Units |
| Shipping Weight: | 210 lbs (85.5kg) with media |
Environmental
| Electrical: | 115/230 VAC, 0.45kVA |
| Frequency: | 50-60 Hz |
| Altitude: | 30,000 ft (9,144m) |
| Temperature: | 10 to 40ºC operating |
| Humidity: | 20 to 80% non-condensing operating |
| Power Consumption, Library: | 93W 317BTU/hr |
| Power Consumption, Drive Sled: | LTO-2: 31W, 106 BTU/hr
LTO-1, AIT: 40W, 136 BTU/hr
SDLT: 29W, 99BTU/hr
DLT8000: 44W, 150 BTU/hr |
| Power Consumption, Storage Networking Controller: | 30W 102BTU/hr; 30W 10BTU/hr; |
Compliance and Certification
| Safety: | C-TUV-US, TUV/GS, IEC 60950 with worldwide country deviations |
| Emissions: | FCC, VCCI, CISPR 22 and EN 55022 Class A, EN 61000-4-2, 3, 4, 5, 6, 8, and 11 |
| Immunity: | EN55024, CISPR 24 |
| International: | CE, BSMI |
Storage Networking Support
| Platform/Connectivity: | SNC™ 2Gb/sec. Fibre Channel x 4 LVD SCSI |
| Management Services: | End-to-end path verification, error recovery, drive performance optimization, SAN security (Scalar Firewall Manager), serverless backup (Data Mover Module) |
Notes:
1 Without affecting library operation. Bus integrity must be sustained.
2 Power consumption is obtained using RMS values for voltage and current. Indicated Agency Label value for maximum volt-Amperes of 240V*3.5A (840W) should be used to determine non-cooling system requirements. Drive sled power consumption is taken while writing to a tape.
|
|
|
|
|
