NAS2000

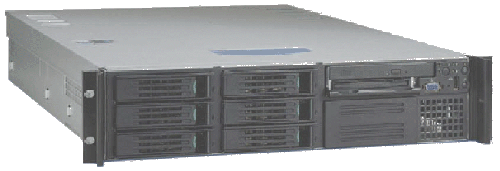

The NSS NAS2000 is a full featured 2U rack mountable NAS server that houses our award winning SPANStor NAS Software. The NAS2000 is capable of supporting 1Gb or 2Gb fibre storage systems as well as SCSI Ultra160 and Ultra320 storage systems. SPANStor V5 is capable of managing up to 32 Terabytes of storage.
Simply add the storage system of choice to our NAS2000 and your solution is complete.  SPANStor V5 NAS Software is preloaded and ready for you to configure. Configuration is made easy with intuitive menu driven GUI’s.  We can also bridge that “NAS” and “SAN” convergence problem for you.

So test drive our NAS2000 with SPANStor V5 Software today.

Feature Set

  • SPANStor open architecture NAS Software

  • SPANSync file based replication; one to many and many to one

  • SPANSnap pointintime view of the file system; up to 500 snapshots

  • per file system

  • MultiProtocol Filing Locking ensures secure crossplatform lock          management for mixed UNIX and Windows networks

  • Supports NFS, CIFS, and HTTP

  • Supports DNS, NIS, and WINS

  • FTP support for client and server

  • SNMP v2 with trap support

  • Supports FCAL and fabric logon

  • NDMP support

  • File Quotas

  • Multiple NIC support

  • Journaling File System

  • Active/Passive failover support


NAS2000 Specifications

CPU:                           Intel Xeon 2Ghz

Memory:                      1GB DDR SDRAM standard expandable to

                                   4GB Front Side Bus 400Mhz

I/O slots:                      1 full height and 1 low profile

Ethernet Connections:   2 copper Gigabit RJ45

Operating System:        SPANStor V 5 preloaded; internal disk drive



Chassis

Dimensions:    19.0x3.5.x25.0 in (WxHxD)

Power Supply: 500W 100-240 VAC autosensing, hotswapable with dual power cords

Cooling:           4 X 8CM fans



Environmental

Temperature:  10-35 degrees Celsius

Humidity:       5-95% non-condensing

Regulations:   FCC, CE, UL/CUL, TUV
