VFS113, Fibre Channel-to-Ultra2 SCSI

Overview

Chaparral's VFS113R Intelligent Storage Router enables connectivity between SCSI devices and Fibre Channel networks. Companies can take advantage of the robust features of Fibre Channel Technology while protecting investments in new and legacy SCSI storage devices. By combining the benefits of Fibre Channel with Ultra2 LVD SCSI, this new generation router is ideal for mid-range to high-end UNIX and NT markets. The Chaparral VFS113R provides the performance, reliability and fault tolerance for enterprise-class storage and the emerging Storage Area Network (SAN) environment. Chaparral also offers optional Extended Copy feature for high-speed backup over Fibre Channel.

Highlights

  • Fibre Channel connectivity for SCSI storage devices
  • Server-free backup with Extended Copy Agents
  • Full Duplex1.0625 Gigabit/second Fibre Channel host port
  • Three Ultra2 SCSI channels each capable of 80 MB/sec transfers
  • Industry leading sustained data transfer rate and IOPS
  • LAN Management Interface

Specifications

Technical Specifications
Fibre Channel
  • One Fibre Channel host port
  • 1.0625 Gbit/sec transfer rate
  • FC-AL and FC-SW topologies
  • Private Loop Direct Attach (PLDA) compliant
  • Class 3 service
  • SCSI—FCP protocol
  • Multi-initiator support (up to 128)
SCSI
  • Three independent SCSI buses
  • Ultra2 SCSI LVD (80 MB/sec) or single-ended (40 MB/sec)
  • HVD option with Ultra Wide SCSI (40 MB/sec) throughput
  • Up to 15 devices per bus (45 total devices)
  • Support for up to 64 LUNs
  • CD-ROM and DVD drives, DVD and optical devices libraries
Interfaces
  • One RJ-11 RS-232 Serial port
  • One RJ-45 Ethernet port, 10-base T
Performance
  • 90+ MB/sec sustained data rate
  • 6,500+ Input/Output operations per second IOPS
Management
  • In-band and out-of-band capability
  • RS-232 and embedded Text User Interface (out-of-band)
  • Chaparral's Application Programming Interface (CAPI) (in-band)
  • Firmware upgradeable in-band or out of band via RS-232 or Ethernet
  • Router addressable as a LUN for easy and standard management
  • Extensive and automatic device discovery
  • Automatic SCSI device mapping or persistent fixed device mapping through power cycles and reboots
Advanced Features
  • Disk-to-tape, tape-to-disk and disk-to-disk data movement support using Extended Copy
Physical and Environmental Specifications
Physical
  • Board
    • 1.08"H x 4.95"W x 7.34"D
  • Canister
    • 5.25" half-high industry-standard form-factor
    • 1.61"H x 5.75"W x 8.625"D

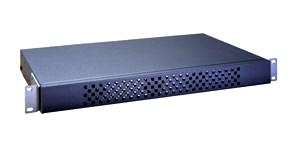

  • Rack mount/Desktop
    • 1.7"H (1U) x 17"W x 9.5"D enclosure
    • Rack mount (with detachable brackets) or desktop use
    • Front or rear mount in cabinet
