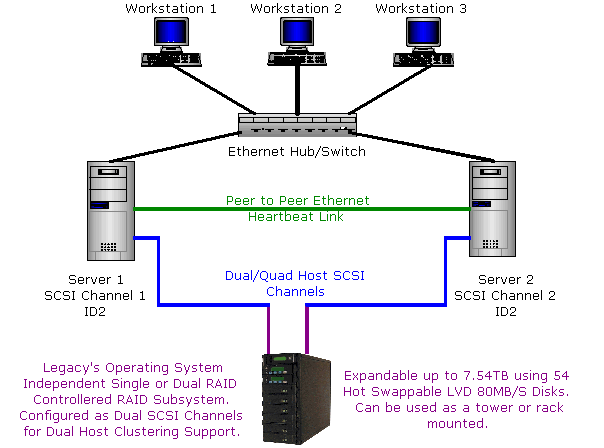

Legacy Supported Configuration for
Legato RepliStor (Octopus) for NT via SCSI




Net useable Disk Space in RAID Subsystem does not needs to be partitioned. Single LUN is used as follows:
LUN (Partition) Mapped to Storing
0 Server 1 like an external disk drive Server 1's Data
1 Server 2 like an external disk drive Server 2's Mirrored Copy of Server 1's Data



Tape Backup via SCSI Tape Devices on each Server
Servers can be dis-similar servers
Active-Active No. Uni-Directional Active-Passive Failover
Servers require SCSI Host Bus Adapter and 2nd Ethernet Adapter for Peer-Peer Heartbeat Link
