Autoloaders, Tape Library Replication Solutions

Solutions include: standlone tape replication, offline tape replication, tape replication for UNIX, Windows, Linux, Netware, Mac; Formats include: LTO replication, DLT replication, SDLT replication, AIT replication... Multiple Tape Autoloader replication, Single Tape library replication, Multiple Tape library replication.

Unylogix's Tape Array controllers Copy, Copy & Verify or Verify Only your backup tapes with seamless automation. Provides high speed media duplication and verification operations without server intervention.

Make "EXACT" Copies of Your Backups, OFFLINE



Features

    No Server Required
    Tape Operations:
    • Copy
    • Copy & Verify
    • Verify Only
    SERVER FREE Data Path
    All Major Tape Drives are Supported

Duplication operations are initiated locally from the controller's front panel operator console, or remotely using the centralized tape duplication management console. Supports a single jukebox or library configuration with up to 5 drives or up to 5 autoloaders, jukeboxes or libraries configured with 1 drive each. The Unylogix automated media duplication controller supports up to 5* tape drives. Simultaneously create up to 4* EXACT original copies of your data server free at high speed. To increase production rates, a data mirroring controller with additional drives can be added to produce a flexible and scalable duplication solution.

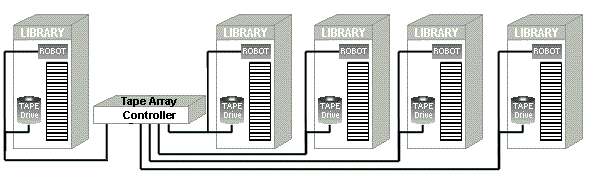

Automated tape duplication - 1 to 4 tape libraries

Automated tape duplication from 1 library to 4 libraries



Specifications

Supported RAIT Levels

Level 1    Mirroring two, three, four, or five drives

Host and Array Interface

The host interface provides connection between the array controller and SCSI host system.
The array interface provides connection between the array controller and SCSI tape drives.

    Model:   TLR2
    Host Interface:  High Voltage Differential or Single-ended, Wide provides 20 MB/sec burst data transfer rate.

    Array Interface:  5 Array SCSI Channel Interfaces; Single-ended Narrow SCSI channels provide 10 MB/sec burst data transfer rate for each array channel, yielding a 50 MB/sec total transfer rate.

    Model:   TLR3
     Full 40 MB/sec sustained data throughput

    Host Interface:  High Voltage Differential (HVD) Fast & Wide synchronous transfer provides 20 MB/sec sustained data transfer rate.

    Array Interface:   Five independent parallel SE Wide SCSI channels provide 20 MB/sec sustained data transfer rate for each array channel.

    Model:  TLR3HVD
     Full 40 MB/sec sustained data throughput

    Host Interface:  ULTRA Wide synchronous transfer provides 40 MB/sec sustained data transfer rate. High Voltage Differential (HVD) SCSI interface.

    Array Interface:   Five independent parallel High Voltage Differential (HVD) Wide SCSI channels provide 40 MB/sec sustained data transfer rate for each array channel.

    Model:  TLR3LVD
     Ultra 2 LVD 80MB/Sec SCSI Interface

    Host Interface:  ULTRA2 LVD Wide synchronous transfer provides 80 MB/sec burst data transfer rate.

    Array Interface:   Five independent parallel ULTRA LVD/SE Wide SCSI channels provide 40 MB/sec burst data transfer rate for each array channel.

    Model:  TLR4
     260 GB/Hour sustained backup SPEED!

    Host Interface:   ULTRA2 LVD Wide synchronous transfer provides 80 MB/sec sustained data transfer rate.

    Array Interface:  Five independent parallel ULTRA LVD/SE Wide SCSI channels provide 40 MB/sec sustained data transfer rate for each array channel.
