The first SAN-enabled library for
consolidated enterprise backup.
Supports LTO, SDLT/DLT, and AIT technologies
|
|
|
 |
|
With its capacity-on-demand scalability, built-in storage network support, and high-availability architecture, the Scalar 10K brings the efficiencies of consolidation to your backup.
The Scalar 10K’s unique capacity-on-demand scalability lets you scale your storage capacity more easily and quickly than you can with any other library. Capacity-on-demand systems ship with extra capacity that you can activate, in 100-tape increments, using a software key. You pay only for the capacity you use.
For high-capacity or mixed-media needs, the Scalar 10K offers traditional library configurations. These maximum capacity models have up to 15,885 tape slots and allow you to combine LTO, SDLT, and AIT technology in the same chassis.
The Scalar 10K is the first library to offer integrated storage network support, with certified interoperability that means seamless operation in new or existing SANs. The system supports multiple protocols and heterogeneous fabrics at the same time. Integrated SAN management services, such as serverless backup and data-path conditioning, provide better backup in storage networks.
The Scalar 10K’s high-availability architecture, which includes true 2N power and dual data paths, is designed to meet the reliability demands of data consolidation. Features to ensure maximum system uptime include auto-calibration, self-configuration, and magazine-based loading of up to 7.9TB (native) at once.
|
Features and Benefits
- Capacity-on-demand scalability: lets you instantly activate additional storage while paying only for the storage you actually use
- Enterprise size: high drive count for maximum performance and flexible configurations
- Proven connectivity: storage network interoperability means seamless integration into new or existing SANs
- Intelligent SAN support: integrated storage networking support—including serverless backup, data path conditioning, and built-in firewall—for easier installation and operation, higher performance and reliability
- High availability: features include true 2N power, dual SCSI library control channels, hot-swap drives
- Reliability: diagnostic options include real-time health checks, email and pager alerts, and phone-home event reporting
- Rapid configuration: five slots-per-second inventory speed; auto-discovery and auto-calibration of all components
- Investment protection: supports LTO, SDLT, and AIT in single- or multi-technology installations for maximum flexibility and performance
- Virtual libraries: provides up to 16 “virtual library” partition options for multiple applications support
- Responsive service: one-year on-site service provided by ADIC technical Assistance Center (ATAC) with 24-hour, worldwide service and support

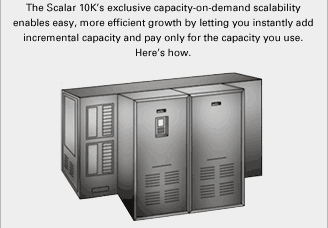

With capacity-on-demand scalability, you add capacity as your data grows, paying only for the storage you actually use.
Scalar 10K capacity-on-demand libraries come with extra capacity that you can activate in increments of 100 tape slots using software authorization keys. When most of the capacity of an installed unit has been activated, ADIC delivers additional capacity upgrades at no charge.
Capacity-on-demand libraries provide seamless pay-as-you-grow scalability, from 700 to nearly 5000 tape cartridges and from 1 to 168 drives, without any internal barriers or pass-through ports.
 |
|
Scalar 10K Capacity-on-Demand Configurations
Scalar 10K capacity-on-demand libraries come with extra capacity that you can activate in increments of 100 tape slots using software authorization keys. When most of the capacity of an installed unit has been activated, ADIC delivers additional capacity upgrades at no charge.
Capacity-on-demand libraries provide seamless pay-as-you-grow scalability, from 700 to nearly 5000 tape cartridges and from 1 to 168 drives, without any internal barriers or pass-through ports.
| Drive Technology | Drives | Cartridges | Increments | Capacity (Native) | Capacity (Compressed) |
| LTO-2 | Up to 84 | 700 to 3,945 | 100 tapes | 789.0TB | 1,578TB |
| LTO-1 | Up to 84 | 700 to 3,945 | 100 tapes | 394.5TB | 789.0TB |
| SDLT 320 | Up to 84 | 700 to 3,302 | 100 tapes | 528.3TB | 1,056.6TB |
| SDLT 220 | Up to 84 | 700 to 3,302 | 100 tapes | 363.2TB | 726.4TB |
| AIT-3 | Up to 96 | 700 to 5,478 | 100 tapes | 547.8TB | 1,404.8TB |
| AIT-2 | Up to 96 | 700 to 5,478 | 100 tapes | 273.9TB | 702.4TB |
| 3590 H1A | Up to 24 | 700 to 3,402 | 100 tapes | 198.1TB | 594.4TB |
The table below shows the delivered capacity, upgrade trigger points, drive positions available, and overall physical dimensions for Scalar 10K capacity-on-demand libraries.
| Drive & media | For activated capacity of: | We deliver total tape positions of: | Total drive positions of: | The overall system measures: D x L x H |
| LTO | 700 to 1,300 | 1,785 | 36 | 4.3’D x 10.5’L x 6.4’W |
| 1,400 to 2,000 | 2,865 | 60 | 4.3’D x 15.5’L x 6.4’W |
| 2,100 and up | 3,945 | 84 | 4.3’D x 20.5’L x 6.4’W |
| AIT | 700 to 1,700 | 2,241 | 72 | 4.3’D x 10.5’L x 6.4’W |
| 1,800 to 2,600 | 3,597 | 120 | 4.3’D x 15.5’L x 6.4’W |
| 2,700 and up | 4,953 | 168 | 4.3’D x 20.5’L x 6.4’W |
| SDLT | 700 to 1,100 | 1,494 | 36 | 4.3’D x 10.5’L x 6.4’W |
| 1,200 to 1,700 | 2,398 | 60 | 4.3’D x 15.5’L x 6.4’W |
| 1,800 and up | 3,302 | 84 | 4.3’D x 20.5’L x 6.4’W |
Scalar 10K Maximum Capacity and Mixed-Media Configurations
For users with requirements for mixed media or higher cartridge and drive counts than capacity-on-demand libraries, the Scalar 10K offers maximum capacity models. These libraries provide up to 15,885 tapes, 648 drives, the ability to support multiple kinds of media at the same time, and a high degree of configuration flexibility.
| Drive Technology | Drives | Cartridges | Capacity (Native) | Capacity (Compressed) |
| LTO-2 | Up to 324 | Up to 9,582 | 1,916.4TB | 3,832.8TB |
| LTO-1 | Up to 324 | Up to 9,582 | 958.2TB | 1916.4TB |
| SDLT 320 | Up to 324 | Up to 8,014 | 1,282.2TB | 2564.5TB |
| SDLT 220 | Up to 324 | Up to 8,014 | 881.5TB | 1,763.0TB |
| AIT-3 | Up to 648 | Up to 15,885 | 1,588 | 4,130.1TB |
| AIT-2 | Up to 648 | Up to 15,885 | 794.3 | 2,065.2TB |
| 3590-HIA | Up to 104 | Up to 7,738 | 464.3 | 1,392.8TB |
Storage Networking Support
| Platform/Connectivity: | SNC 5100 (2 Gb Fibre Channel) or SNC 3000 (1 Gb Fibre Channel) |
| Management Services: | End-to-end path verification, error recovery, drive performance optimization, SAN security (Scalar Firewall Manager), serverless backup (Data Mover Module) |
Reliability
| Drive Hard Error Rate: | Less than 1 in 1017 bits |
| Tape Shelf Life: | 30 years minimum (at 20°C, 40% RH) |
| Library MCBF: | Greater than 2,000,000 |
| Drive MTBF: | Greater than 200,000 power-on hours |
| Power: | 2N power for all systems and drives |
| MTTR: | 30 minutes |
| Library Control Ports | Dual, redundant ports are standard |
| Diagnostics: | SNMP traps reported through RMU or Scalar DLC. Built-in self-test, store/restore past events, fault isolation assistance, self-initiating configuration and calibration; email alert |
| Module Upgrade: | Any storage module may be added in two hours; customer installable drive and slot upgrade |
Operation
| Cartridge Change: | Up to 450 per hour |
| Drive Interface: | LTO: SCSI-2 LVD; AIT: SCSI-2 LVD or HVD; SDLT: SCSI-2 LVD or HVD; integrated FC interface optional for all |
| Library Interface: | SCSI-2 LVD or HVD; integrated FC interface optional |
| Inventory Speed: | 100 slots in 20 seconds |
| Configuration: | Auto-discovery and auto-calibration for installed or added components (modules, drives, magazines, tapes, etc.) |
| Import/Export | Up to 72 (LTO or SDLT) or 108 (AIT) positions in removable magazines |
Environmental
| Electrical, Library Controller: | 220 VAC, 4.4kVA |
| Electrical, Drive Cabinets: | 110-220 VAC, 2.2kVA |
| Temperature: | 16 to 32°C operating |
| Humidity: | 15 to 75% non-condensing operating |
Compliance and Certification
| Safety: | EN 60950 with deviations |
| Emissions: | CISPR 22/EN 55022 Class A |
| Immunity: | EN 55024 |
| International: | CE, FCC, ICES, cTUVus, TUV/GS |
|
|
|
|
|
