P6000 Series Data Sheet
|
|
|
FIBRE CHANNEL
ENTERPRISE-CLASS DLTtape LIBRARY
The P6000 automated DLTtape™ Library is designed to satisfy the extraordinary
performance, capacity and accessibility requirements of data-intensive
applications such as On Line Transaction Processing (OLTP), data warehousing
and image archiving. The P6000's Fibre Channel connectivity enables
high performance and capacity in SAN environments.
MASSIVE PERFORMANCE
AND CAPACITY FOR DATA INTENSIVE APPLICATIONS

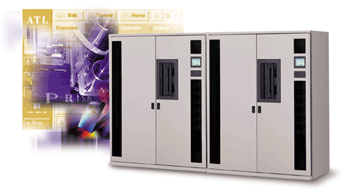

The P6000 delivers massive performance and capacity. A single P6000 module
supports up to 32 DLT7000 drives and 652 cartridges for a native data
transfer rate of 576 gigabytes per hour and a native capacity of 22.8
terabytes. The P6000 is the industry’s highest throughput DLTtape Library,
enabling backup of up to 4.6TB (native) in a normal eight hour window.
HIGH AVAILABILITY
(HA) DESIGN FOR CONTINUOUS ACCESS TO YOUR DATA
The P6000 library includes ATL's IntelliGrip™ precision cartridge
handling system used in thousands of reliable ATL libraries. In addition,
the P6000 is a DLTtape library with High Availability (HA) features found
only in HA server and RAID systems. The multi-terabyte P6000 features
redundant AC power sources, power supplies and fans, and single connector,
hot-swap drives, power supplies and fans.
PRISM LIBRARY
ARCHITECTURE™ FOR "FUTURE PROOF" STORAGE
Millions of PCs, workstation and servers are "future proof" because they
are easily upgraded for specific applications with PCI bus, network and
array adapters. ATL has harnessed the power of the PCI industry with its
revolutionary Prism Library Architecture™. The P6000 with Prism inside
incorporates a PCI expansion bus to support the phased implementation
of user-installable Fibre-Channel adapters, Gigabit network adapters,
single-board computers and tape array controllers.
ERGONOMIC DESIGN
AND POWERFUL TOOLS FOR EASY ADMINISTRATION AND SERVICE
In contrast to its intimidating performance and capacity,
the P6000 sports an ergonomic design and friendly tool-set for easy system
administration and service. For
local administration, the P6000's browser-like touch screen empowers users
to configure, operate and diagnose the library with a simple touch of
their finger.
|
|
P6000
Series Specifications
|
| Host Interfaces |
| SCSI |
Differential SCSI-3 "P" Fast
& Wide,
68-pin Micro D female connectors |
| Fibre |
100MB/sec, Multi-mode optical, SC connectors, 1 connection for each 6 tape drives |
| Software |
SCSI-2 medium changer command set |
|
Library Diagnostics |
| Port |
2 x 9-pin RS-232C, EIA/TIA-574 female connector (cable included) |
| Diagnostics |
RS-232C service port for connection
to field service PC or Solaris Workstation running diagnostic
software |
|
Cabinet Characteristics |
| Height |
75 inches (191 cm) |
| Width |
117 inches (297 cm) |
| Depth |
29 inches (74 cm) |
| Weight |
2600 pounds (1179 kg) with 32 drives |
|
Power Input |
| Electrical Rating |
100-240V, 16A-8A, 50/60 Hz |
| Dissapation- Heat Load |
1600w, 5460 Btu/Hr. |
| Power Cord |
US NEMA 5-20P male connector
IEC 320 C19 female connector
Rated 125V 20A |
|
|
| Environmental |
|
Operating
| Humidity |
20% to 80%, non-condensing |
| Temperature |
10° C to 32° C (50° F to 90° F) |
| Altitude |
Sea level to 10,000 ft. |
Non-operating (storage & shipping)
| Humidity |
5% to 95%, non-condensing |
| Temperature |
-40°C to 65°C (-40°F to 149°F) |
| Altitude |
Sea level to 12,000 ft. |
|
Agency Approvals |
| Safety |
UL1950 Listed, cUL to CSA,
C22.2-No. 950, TUV-EN60950, EN60825 |
| EMC |
FCC Part 15 Class A, CE Mark (89/366
EEC, 73/23 EEC),VCCI Class A, C-Tick |
|
Robotics Reliability |
| MTBF |
250,000 power-on hours |
| MSBF |
1 million load/unload cycles (swaps) |
| MTTR |
Less than 30 minutes |
|
|
|
|
|
|
|
|
