NetStorNAS NAS Filer - Specifications

Change View: Front with Raid - Back - Front Open Top

NetStorNAS is available in many configurations. The 2U rackmount header powers the NAS operating system, while dedicated RAID controllers power the I/O and RAID calculations. NetStorNAS can be configured with up-to (6) Ultra160 SCSI hard disk drives within the 2U rackmount NAS header, or for more powerful RAID options and scalability, most configurations feature external dedicated RAID hardware that attaches directly to the 2U rackmount NAS header via SCSI. By utilizing the more powerful external dedicated RAID options, you can scale NetStorNAS from 120 GB up-to 64 TB of storage, and any increment in-between.

NetStorNAS features 5 available expansion slots for high-performance options such as additional Gigabit Copper/Fiber Optic Ethernet or additional SCSI bus channels for higher I/O throughput or locally attached Tape Backup (single or multi-drive/multi-slot) devices. When configuring NetStorNAS with internal SCSI hard disk drives (as opposed to external RAID), one of the expansion slots will be occupied by a high-performance RAID card.

The standard hardware configuration for the 2U rackmount NAS Header features a single Intel Pentium 4 Xeon 2.4 GHz CPU (with Hyper-Threading enabled), 1 GB of DDR PC2100 ECC memory, and 400W hot-swap redundant power.

2U Rackmount NAS Header Details:

• 3.5" H x 19" W x 25.6" D
• Single Intel Pentium 4 Xeon 2.4 GHz CPU
• 1 GB DDR PC2100 ECC memory
• 400W hot-swap redundant power
• Integrated slim-line CD-ROM/floppy
• (2) 10/100/1000Mb Gigabit Copper Ethernet built-in
• (6) Internal Ultra160 hard disk drives available
• (5) Expansion slots for additional Gigabit Ethernet, Additional SCSI channels, or Internal RAID
• NetStorNAS operating system featuring (32) Snapshot license

NAS Header Options:

• Dual Intel Pentium 4 Xeon 2.4 GHz CPU’s
• 4 GB DDR PC2100 ECC memory
• Up-to (6) Network Interface Cards total (mix/match Copper and Fiber Optic)
• Single and Multi-drive/multi-slot Tape Backup Device (locally attached) Bundle Kit
• Attach up-to (15) separate dedicated hardware RAID arrays (IDE, SCSI, SATA, Fibre Channel), total capacity up-to 64 TB
• Upgrade (32) Snapshot license to (64) Snapshot license

Rackmount RAID attached to NAS Header:

• Many configurations available from 120 GB to 64 TB

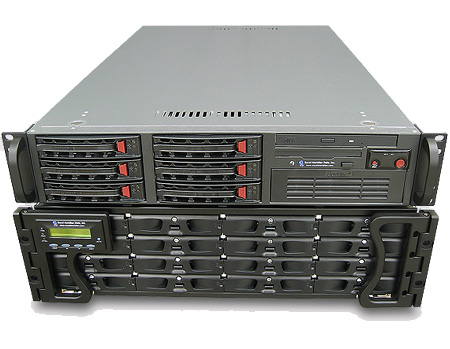

Configuration shown:

• Dual Intel Pentium 4 Xeon 2.4 GHz CPU’s
• 2 GB DDR PC2100 ECC memory
• 400W hot-swap redundant power
• (2) 10/100/1000Mb Gigabit Copper Ethernet built-in
• (2) 10/100/1000Mb Gigabit Copper Ethernet added via expansion
• (2) Ultra160 SCSI channels, one for external RAID array, one for external Tape Backup device
• (1) 16-bay SATA IDE-to-SCSI RAID solution configured with 4TB capacity

Storage Drives:

• External Ultra160 SCSI outboard dedicated hardware RAID controller
• External 2Gb Fibre Channel outboard dedicated RAID options available

Power Supply: 400 Watt Redundant hot-swappable power supply module

• Physical: Two power receptacles
• Input: 110-220 VAC auto-switching, with +/- 10% tolerance
• Frequency: 47hz-63hz
• Output: + 3.3V and + 5V: 45A total
                + 3.3V, + 5V and - 12V: 385W total

Cooling: (4) 80mm ball bearing fans in chassis

Environmental:

• Operating Temperature: 0 to 35 degrees C
• Humidity: 5-90% non-condensing

Dimensions: 19” W x 3.46” H x 25.6” D (for 2U NAS header)

Regulations: FCC Class B, CE, UL/CUL, TUV
